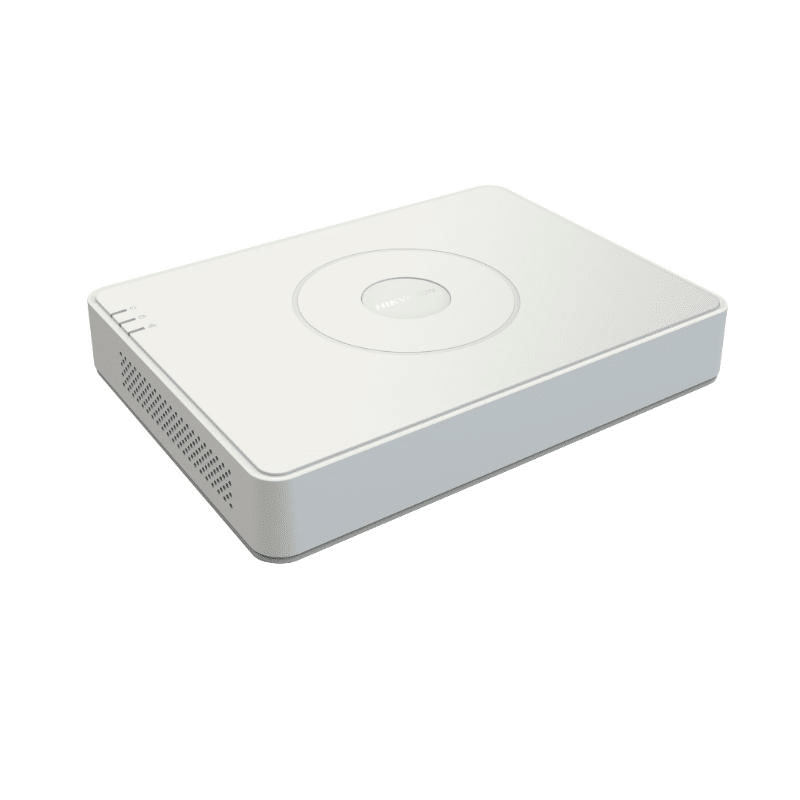

HIKVISION iDS-7116HQHI-M1/S 16-ch 5MP Mini 1U H.265 AcuSense DVR
Original price was: 15,300.00৳ .12,500.00৳ Current price is: 12,500.00৳ .
Features
- Model : iDS-7116HQHI-M1/S
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- Deep learning-based perimeter protection
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 24-ch IP camera inputs (up to 6 MP)
- Encoding ability up to 3K/5M Lite @ 12 fps
SPECIFICATION
| Recording | ||
| Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
| Encoding Resolution |
When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
|
| Frame Rate |
Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
|
| Video Bitrate |
32 Kbps to 6 Mbps |
|
| Stream Type | Video, Video & Audio | |
| Audio Bitrate | 64 Kbps | |
| Video And Audio | ||
| IP Video Input |
2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
|
| Analog Video Input |
16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|
| HDTVI Input |
3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps |
|
| AHD Input |
5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
|
| HDCVI Input |
5MP(2880 × 1620)@25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
|
| HDMI Output |
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
| VGA Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|
| Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
|
| Audio Input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable |
|
| Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
| Network | ||
| Total Bandwidth |
128 Mbps |
|
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| Remote Connection | 128 | |
| Network Interface |
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
|
| Auxiliary Interface | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 10 TB capacity for each disk | |
| USB Interface |
Real panel: 2 × USB 2.0 |
|
| General | ||
| Power Supply | 12 VDC, 2A | |
| Working Temperature | -10 °C to 55 °C (14 °F to +31 °F) | |
| Dimension (W × D × H) | 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch) | |
| Weight | ≤ 1 kg (2.2 lb) |
Hikvision iDS-7116HQHI-M1/S 16-ch DVR Surveillance System
| Brand | |
|---|---|
| Megapixels |
5MP |
| Warranty |
