Dahua

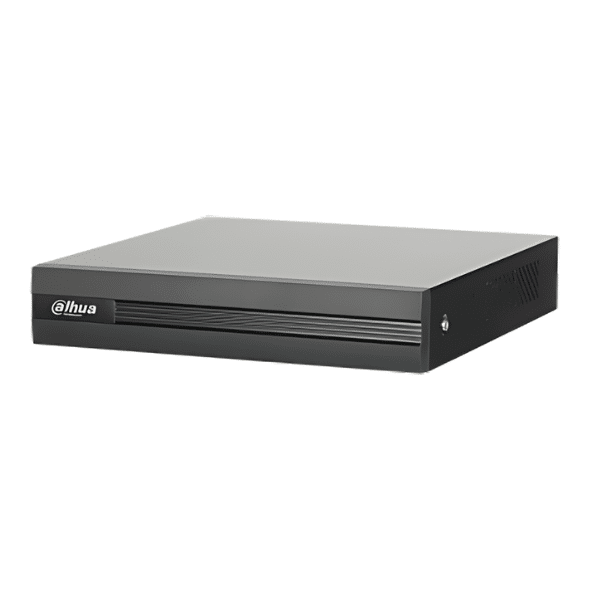

Dahua XVR1B04H-I 4 Channel 5MP XVR Penta-brid 5M-N/1080p Cooper DVR

Original price was: 7,150.00৳ .Current price is: 4,600.00৳ .

Features

  • Model: Dahua XVR1B04H-I
  • H.265+/H.265 dual-stream video compression
  • Supports Full-channel AI-Coding
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 6 channels IP camera inputs
Add to compare
Add to wishlist
SPECIFICATION

SPECIFICATION

System
Main Processor

Industrial-grade processor
Operating System

Embedded Linux
Operating Interface

Web; Local GUI
SMD Plus by Recorder

8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Video And Audio
Analog Camera Input

4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input

1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
4. CVBS: PAL/NTSC
IP Camera Input

Up to 6 channels of IPC access

2 IP channels by default + 4 channels (analog channels are converted to IP channels)

incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps

*After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled.
Encoding Capacity

Main Stream:
All channel 5M-N@ (1 fps–10 fps); 4M-N/1080p@ (1 fps–15 fps); 1080N/ 720p/960H/D1/CIF@ (1 fps–25/30 fps)
Sub stream:
D1/CIF (1 fps–15 fps)
Video Bit Rate 32 kbps–4096 kbps
Audio Bit Rate 64 kbps
Video Output

1 HDMI, 1 VGA

HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Third-party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Multi-screen Display

When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6
Compression Standard
Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression

G.711a; G.711u; PCM
Alarm
General Alarm

Motion detection, video loss, tampering
Anomaly Alarm

No disk, disk error, low space, offline, ip conflict, MAC conflict
Network
Mobile Phone Access iOS; Android
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Interoperability ONVIF 21.06; CGI Conformant
Browser

Chrome
IE9 or later
Firefox
Ports
Audio Input

1-channel RCA

4-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk

Reuse audio in/out, RCA
Disk Interface

1 SSD: 512 GB (replaceable with 256 GB or 1 TB)

Stores for 11 days under default settings
Others

1 HDMI; 1 VGA, 1x Network
General
Power Supply 12 VDC, 1.5A
Working Temperature –10 °C to +45 °C (+14 °F to +113 °F)
Dimension (W × D × H) 197.0mm × 203.4 mm × 41.5 mm (7.76” × 8.01” × 1.63”) (W × D × H)
Ner Weight 0.55 kg (1.21 lb)
Certifications

CFCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024
Description

Dahua XVR1B04H-I 4-Channel DVR: Enhance Your Surveillance

Upgrade your security setup with the Dahua XVR1B04H-I 4-channel DVR. Engineered with cutting-edge technology and reliable performance, this DVR offers unmatched surveillance capabilities for both residential and commercial use.

High Definition Clarity: Experience superior image quality with the Dahua XVR1B04H-I, supporting high-definition resolution for crisp and clear video footage.

4-Channel Capacity: Monitor multiple areas with ease using the DVR’s 4-channel capacity, providing comprehensive coverage for small to medium-sized properties.

Advanced Motion Detection: Stay informed of any suspicious activity with advanced motion detection features, alerting you instantly to potential security breaches.

Remote Access: Access live video feeds and recordings remotely via the Dahua DMSS app, allowing you to monitor your property from anywhere, anytime, using your smartphone or tablet.

Efficient Compression: Utilize space efficiently with the DVR’s advanced compression technology, ensuring optimal storage of video footage without compromising on quality.

Simple Installation: Set up your surveillance system quickly and hassle-free with the Dahua XVR1B04H-I, designed for easy installation and user-friendly operation.

Durable Build: Built to withstand harsh environmental conditions, the Dahua XVR1B04H-I features a rugged construction, ensuring reliable performance even in challenging environments.

24/7 Surveillance: Rest easy knowing that your property is under constant surveillance, day and night, with the DVR’s infrared night vision capabilities.

Invest in the Dahua XVR1B04H-I 4-channel DVR today and take your security to the next level with its advanced features and dependable performance.
